Wheel articulation is one of the most important factors in off-road vehicle performance. It refers to a vehicle’s ability to allow its wheels to move independently while maintaining traction and stability on uneven terrain. For off-road drivers and enthusiasts, good articulation improves control, safety and durability when driving over challenging surfaces, often making it more important than engine power or tyre size alone.
Significance of Off-Road Wheel Articulation Explained

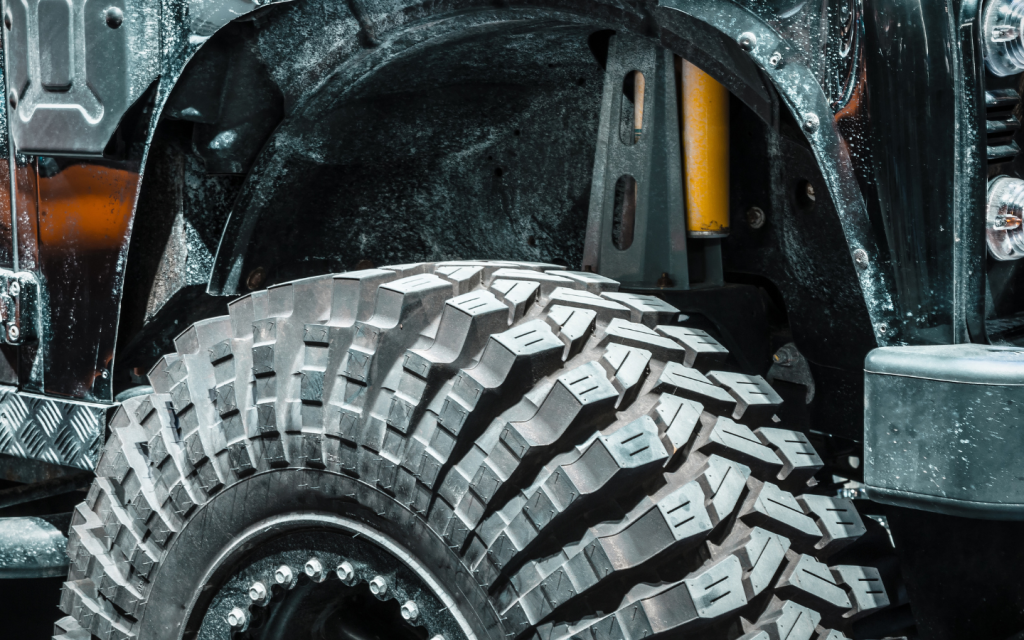

Understanding off-road suspension articulation helps drivers better prepare their vehicles for challenging off-road environments and terrains. Here are some reasons as to why wheel articulation is crucial:
The Physics of Traction and Ground Contact
The main purpose of wheel articulation in off-roading is to keep as many tyres as possible in contact with the ground. Off-road terrain such as rocky paths, dunes and uneven trails often causes wheels to lose contact with the surface. When this happens, traction is reduced, especially in vehicles with open differentials, which send power to the wheel with the least resistance.
If a suspension system is too rigid, one or more wheels may lift off the ground. Although modern vehicles use electronic traction control and locking differentials to improve performance, these systems cannot fully replace the natural grip provided by wheels that remain firmly on the terrain. Better articulation allows the tyre tread to maintain consistent contact with the surface, improving forward movement and overall control.
Vehicle Stability and Centre of Gravity
Wheel articulation also plays an important role in maintaining vehicle stability on sloped or uneven surfaces. When a vehicle travels across rough terrain, the chassis may tilt if the suspension cannot flex properly. This shifts the vehicle’s centre of gravity toward the downhill side, increasing the risk of rollover.

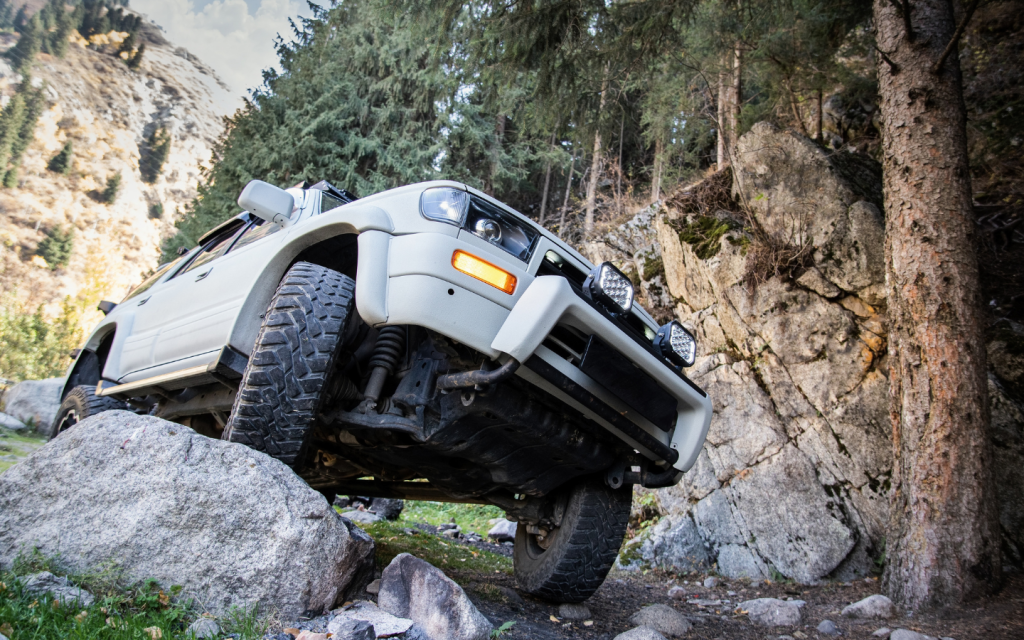

A well-designed suspension system allows the axles to move according to ground contours while keeping the vehicle body relatively level. This helps reduce dangerous tilting and improve stability via wheel articulation of 4×4 vehicles when navigating steep or uneven trails. By keeping the vehicle weight more evenly distributed, articulation enhances both safety and driving control.
Reducing Mechanical Stress and Wear
Off-roading places significant stress on vehicle components. When suspension systems reach their maximum compression or extension limits, the energy from rough terrain is transferred directly to the vehicle frame, joints and suspension parts. Over time, this can cause mechanical damage and expensive repairs.
Good wheel articulation acts as a natural shock absorption system. By allowing greater vertical wheel movement, the suspension absorbs impacts more effectively and reduces strain on mechanical components. This helps prevent damage such as broken suspension links, cracked frame sections and excessive wear on drivetrain components.
Key Components That Improve Wheel Articulation
Here are some components that help enhance wheel articulation:
Sway Bar Management
The sway bar, also known as an anti-roll bar, helps reduce body roll during high-speed road driving. However, it can restrict wheel movement during off-roading. Many off-road vehicles use sway bar disconnect systems that allow the suspension to move more freely when driving on rough trails. This modification significantly improves wheel articulation in off-roading and allows each axle to flex independently.
Shock Absorber Travel
Shock absorbers are another important factor in wheel articulation. The length of shock travel determines how far a wheel can extend into dips or uneven ground. Purpose off-road vehicles often use long-travel shock absorbers with reservoir systems. These setups allow wheels to move through deeper terrain variations without reaching mechanical limits inside the shock system.
Suspension Geometry and Spring Type
Suspension design also affects articulation performance. Coil spring suspension systems generally provide better articulation compared to leaf spring systems because they create less mechanical friction and allow smoother wheel movement. However, leaf springs are still widely used in heavy-duty vehicles due to their strength and load-carrying ability.
In addition, multi-link suspension systems are often considered superior for off-road articulation because they offer better flexibility and improved control over wheel movement.
Balancing Articulation and Stability
While high wheel articulation improves off-road performance, excessive flexibility can sometimes reduce driving stability. If a suspension system is too soft, the vehicle may feel unstable or disconnected from steering input. This condition is sometimes called suspension ‘unloading,’ where off-roading wheels may suddenly lose pressure against the terrain.
The goal is to achieve a balanced suspension setup where the front and rear axles work together smoothly. Professional off-road builders carefully tune suspension stiffness, travel distance and damping performance to maintain both flexibility and stability.
FAQs
Why is wheel articulation important for off-road vehicles?
It helps maintain tyre contact with the ground, improves traction, enhances stability and reduces the risk of losing control on rough or rocky surfaces.
Does higher wheel articulation always mean better performance?
Not always. While high articulation improves off-road capability, it must be balanced with stability for safe and controlled driving.
Can wheel articulation be improved in a vehicle?
Yes, wheel articulation can be improved through suspension upgrades, sway bar disconnects and improved suspension geometry.
Wheel articulation in off-roading is a fundamental element of vehicle performance. It improves traction, enhances safety and reduces mechanical wear while allowing vehicles to move smoothly over challenging terrain.
