All About Battery Placement in EVs

• Understanding EV Battery Placement
• Location of EV Batteries
• Battery Placement and Design
• Impact on EV Performance
• Battery Placement in UAE EVs
• FAQs

Battery placement is a fundamental aspect of electric vehicle (EV) design. It directly influences safety, performance, interior space and overall vehicle dynamics. Unlike traditional internal combustion engine (ICE) vehicles, EV batteries are optimised to become a core element of vehicle architecture.

Understanding Battery Placement in EVs

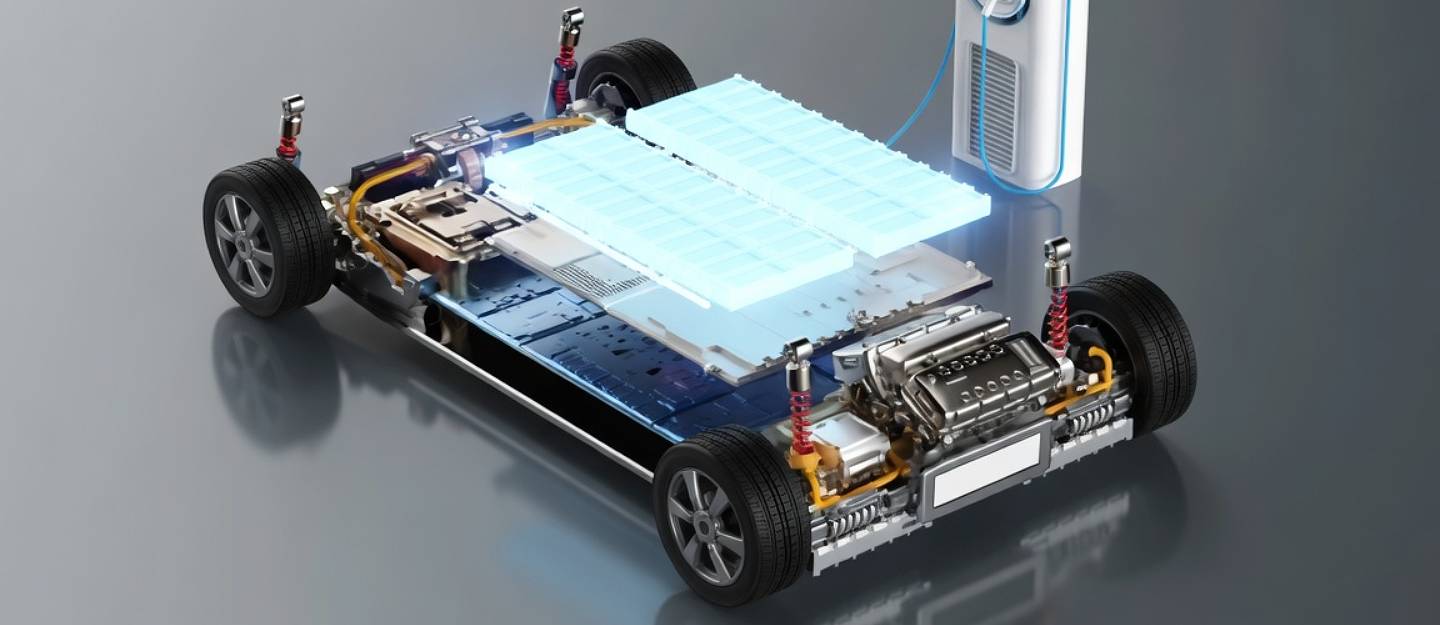

Many modern electric cars use a skateboard architecture, built for an optimised placement of the EV battery. In this design, the battery pack is integrated into the floor of the vehicle, forming a flat, structural base.

This configuration allows manufacturers to:

• Lower the centre of gravity
• Distribute weight evenly
• Maximise cabin and cargo space
• Improve structural rigidity

Where Are EV Batteries Located?

The placement of batteries depends on the different car body types of EV layouts:

• Under the floor (most common): The battery pack sits beneath the passenger compartment, spanning between the axles.
• Within the chassis structure: In some designs, the battery is integrated as a structural component of the vehicle frame.
• Rear or front-mounted (less common): Some earlier or specialised EVs may place battery modules in the rear or front, but this setup is less optimal for weight distribution and balancing.

The typical electric vehicle battery location in modern EVs is the underfloor position, as it supports optimal car weight distribution and safety.

EV Battery Position and Vehicle Design

The EV battery position is central to the vehicle’s overall architecture. By placing heavy battery modules low and centrally:

• The vehicle achieves a lower centre of gravity
• Stability during cornering is improved
• Rollovers are less likely
• Weight is evenly distributed across axles

This layout also allows manufacturers to make EV design more flexible and spacious interiors, as there is no large engine block occupying the front.

Battery Placement Impact on EV Performance

Battery placement impact on EV performance is significant in several ways:

Handling and Stability

A low-mounted battery reduces body roll and enhances cornering stability.

Range Efficiency

Balanced weight distribution improves energy efficiency by reducing unnecessary load on tyres and drivetrain components.

Acceleration

Centralised mass allows better traction, especially in dual-motor or all-wheel-drive EVs.

Interior Space

A flat battery pack enables a flat floor, increasing legroom and storage flexibility.

EV Battery Placement for Safety

EV battery placement for safety is a critical engineering consideration. Battery packs are designed with multiple protective layers and positioned to minimise risk in collisions:

• Crumple zone integration: Batteries are placed away from primary impact zones.
• Reinforced casing: Packs are enclosed in rigid, impact-resistant housings.
• Thermal management systems: These regulate temperature to prevent overheating or thermal runaway.
• Low centre positioning: Reduces the likelihood of rollover accidents.

Placing the battery beneath the floor also helps protect it from direct frontal or rear impacts.

Centralised Battery Placement in EVs Explained

Manufacturers prioritise a central, low-mounted battery pack integrated into the chassis to optimise efficiency and design flexibility. This approach differs from traditional vehicles, where the engine and fuel tank are confined to specific compartments. In EVs, the battery effectively becomes the core structural and functional component of the vehicle.

Battery Position in Electric Cars in the UAE

The battery position in electric cars follows international EV design standards, as the region imports vehicles from international manufacturers. Most EVs available in the UAE feature:

• Underfloor battery placement
• Liquid-cooled battery systems (important for hot climates)
• Thermal insulation to manage high ambient temperatures

FAQs

What is the typical battery placement in electric vehicles?

Most electric vehicles place the battery pack under the floor of the cabin in a flat, central skateboard layout.

How does battery placement affect EV handling and stability?

A low, centrally positioned battery lowers the centre of gravity and improves balance, cornering and overall stability.

Why is underfloor battery placement common in electric cars?

It maximises interior space, improves weight distribution and enhances safety by keeping the battery protected within the chassis.

Can battery placement influence EV range and efficiency?

Yes, optimal placement reduces energy loss through better weight distribution and aerodynamics. This layout improves range and efficiency.

Battery placement is a defining factor in EV engineering. The placement of electric vehicle batteries in a low, centralised underfloor configuration enhances safety, improves performance and efficiency of design.

Many new and used electric cars in the UAE come with optimised design, battery placement and advanced aerodynamics. All these features enhance the electric car range, reducing anxiety and adding to the convenience for motorists.
