One of the first choices in a vehicle performance upgrade is deciding between an exhaust manifold or a header. While both serve the same purpose, routing exhaust gases from the engine and sending them to the exhaust pipe, they differ significantly in design, performance and installation. Understanding these differences is important before making a final choice based on budget and performance needs.
Difference between Exhaust Manifolds and Headers
The following are some differences between exhaust manifolds and headers based on material design, cost and performance.
Material and Design
Exhaust manifolds are made from heavy cast iron or thick steel. They form a single, solid unit that collects exhaust gases from all engine cylinders and channels them through a shared outlet.

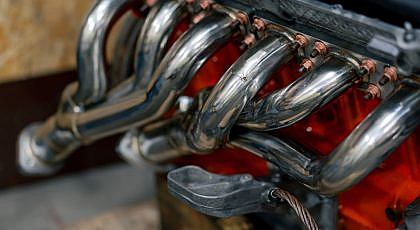

Headers, on the other hand, are made from lightweight stainless steel tubes. They feature long, equal-length pipes that keep exhaust pulses from each cylinder separate before merging into a collector pipe.
Headers vs Manifolds performance
The following is a performance of the exhaust manifold vs header comparison.
Exhaust Manifold Performance
- Exhaust manifolds have a short, compact design. This compact structure creates higher backpressure, which slightly restricts exhaust flow.
- The increased backpressure enhances low-end torque, allowing the engine to perform smoothly at lower RPMs, ideal for city driving and towing.
- Exhaust manifolds also produce less engine noise, which adds to cabin comfort and is suitable for everyday driving.
Header Performance
- As headers have long and equal-length pipes, this is why exhaust gases leave the engine with minimal resistance.
- This reduces backpressure and improves exhaust scavenging at higher RPMs, resulting in better throttle response, increased horsepower and improved engine efficiency.
- The open-tube structure also increases exhaust sound levels.
Cost
- Headers are often made with premium materials like ceramic-coated steel or titanium, which are more expensive than the cast iron or basic steel used in manifolds.
- Headers need precise bending and welding of tubes, with equal lengths for each cylinder. This labour-intensive process is more complex and costly than casting a single-piece manifold.
- Headers require customised installation due to their large size, which can interfere with nearby components. Manifolds match factory dimensions and bolt-on directly, reducing labour costs.
Temperature
Exhaust manifolds tend to retain more heat due to their dense cast-iron construction. This raises engine bay temperatures and can affect nearby components.
Headers dissipate heat more efficiently. Their tubular design and lightweight materials allow hot gases to exit quickly, helping reduce under-hood heat buildup.
FAQs
What is the primary function of exhaust manifolds and headers?
In the headers vs exhaust manifolds debate, both serve the same primary function, which is collecting exhaust gases from the engine cylinders and directing them into the exhaust system.
Do headers increase engine power?
Yes, headers can increase engine power. They reduce exhaust backpressure and improve exhaust flow, which helps the engine breathe better and boosts performance, especially at higher RPMs.
Are exhaust manifolds standard on most vehicles?
Yes, exhaust manifolds are standard on most vehicles. They are factory-installed components.
Deciding between an exhaust manifold or header depends on engine performance, budget and vehicle usage. While headers enhance power and efficiency, they require more investment and complex installation. Manifolds offer a budget-friendly, factory-fit solution that’s reliable for daily driving.
When browsing used cars for sale in the UAE, be sure the check whether the vehicle is equipped with a manifold or a performance header. It could impact your future upgrade plans or repair costs.
If your car is equipped with an exhaust manifold and shows signs like a burning smell or unusual engine noise, it could point to a failing exhaust manifold. Knowing the causes early can help avoid costly repairs.
Stay tuned to the UAE’s best auto blog for more information on car parts maintenance.
