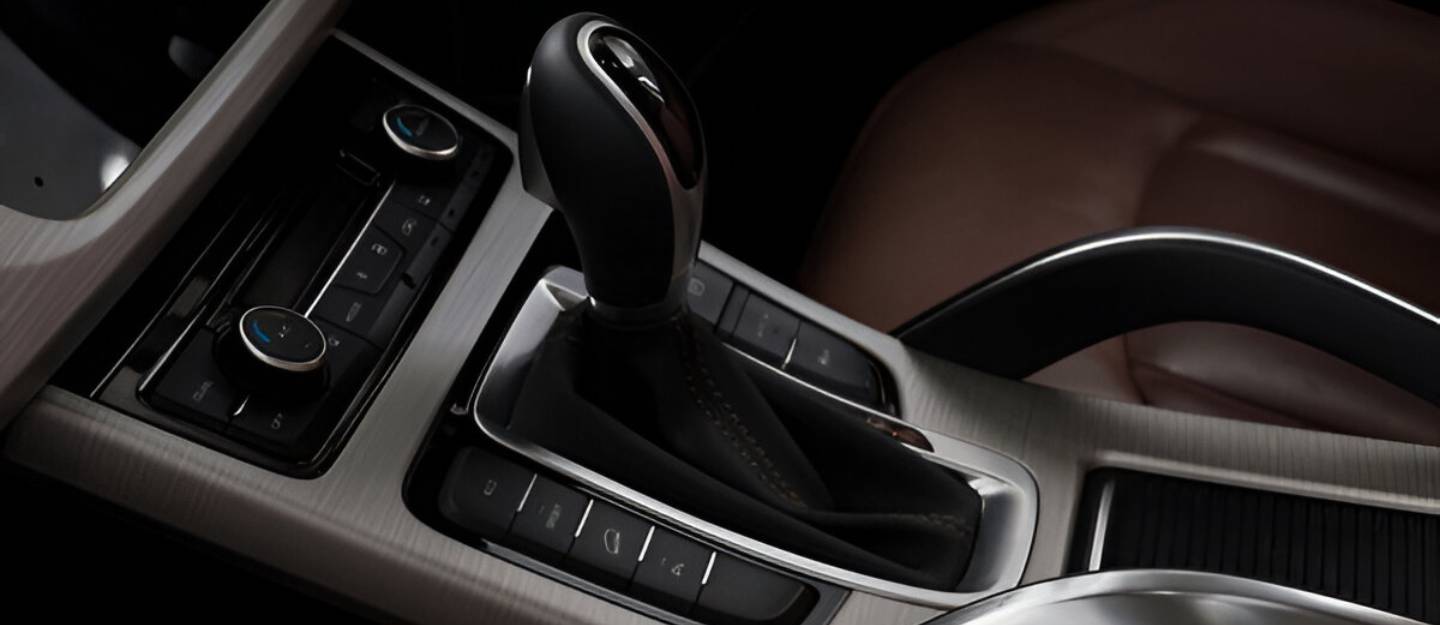

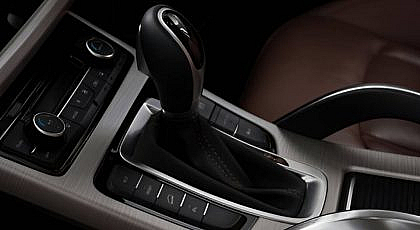

The gear stick has long been a defining feature of the driver’s interaction with a car. Its form and function have evolved dramatically due to the developments in automotive technology and shifting consumer needs. From early mechanical gear levers to today’s electronic gear selectors, the evolution of the gear stick is full of interesting facts based on the advancements made in automobiles over a century.
Brief History of Gear Shifters
The history of the gear shifter began with the earliest automobiles, such as the 1886 Benz Patent-Motorwagen. This pioneering vehicle featured a rudimentary belt-drive and a basic lever for engaging power, a far cry from what modern drivers would recognise as a gear stick. The improvement of internal combustion engines with time fueled the need for multi-speed transmissions.
By 1894, vehicles like the Panhard & Levassor introduced multi-speed manual transmissions. This early phase in car gear history was defined by mechanical complexity and a steep learning curve for drivers. The manual transmission’s evolution progressed slowly, hindered by the limitations of materials and engineering knowledge of the time.
Synchromesh and the Rise of the H-Pattern
A key milestone in gear stick development came in 1919 with the invention of the synchromesh system. This innovation allowed gears to mesh more smoothly by automatically synchronising their speeds, eliminating the need for precise rev-matching done manually. The late 1920s were a significant era for automotive design evolution. It is also when major manufacturers such as Cadillac adopted synchromesh gearboxes, significantly improving usability.
With the growing adoption of synchromesh, the H-pattern gear shift became a standardised layout for manual transmissions. This layout provided intuitive forward and backwards movement for shifting through gears and remains in use in many vehicles today. It marked a turning point in gear shift technology, offering a more ergonomic and reliable interface for the driver.
Ergonomics and Placement of Gear Sticks
In the early 20th century, gear sticks were typically mounted on the floor directly above the transmission. These mechanical gear levers provided a tangible and direct connection to the drivetrain. However, they required long throws and significant arm movement.
The 1930s and 1940s saw the emergence of column-mounted gear levers, famously known as ‘three-on-the-tree’. These levers were placed on the steering column, freeing up cabin space and allowing for wider bench seating. While effective, the column shifter’s long and complex linkage made it susceptible to wear and misalignment. Column-mounted gear selectors are among the many classic car features we miss today, which are no longer applicable.
Eventually, floor-mounted gear sticks regained popularity, especially as vehicles moved towards individual bucket seats and central consoles. The floor-mounted configuration offered better precision, enhanced aesthetics and improved gear stick ergonomics. In sports and performance cars, gated shifters and dog-leg layouts further refined the driver’s interaction with the gear lever.
From Manual to Automatic Transmission
The car transmission transition from manual to automatic marked a fundamental shift in the evolution of the gear stick. The first mass-produced automatic gearbox, the GM Hydra-Matic, was introduced in 1939. This hydraulic system eliminated the need for clutch control and manual shifting. The evolved setup paved the way for the automatic gear stick design.
As automatic transmissions grew in popularity, a new layout emerged: the PRNDL pattern: Park, Reverse, Neutral, Drive and Low. This layout became standardised and widely adopted for its simplicity and safety. Automatic gear stick designs ranged from column shifters to console levers, reflecting both technical requirements and the evolution of car interior design trends.
Advancements in Gear Shift Technology
Modern automatic transmissions have evolved significantly, incorporating more gears. Many now include up to 10 gears and are controlled electronically to enhance fuel efficiency and performance. Continuously Variable Transmissions (CVTs), which allow seamless acceleration without fixed gear steps and Dual-Clutch Transmissions (DCTs), which enable ultra-fast shifts, are both examples of how gear shift technology has become more sophisticated.
In tandem, the gear selector interface has diversified. Traditional mechanical levers are increasingly replaced by electronic gear selectors. It is a trend enabled by shift-by-wire systems that rely on electronic signals rather than mechanical linkages. These systems offer enhanced design freedom, safety features and the potential for haptic feedback.
Shift-by-Wire and Electronic Gear Selectors
Shift-by-wire technology has had a transformative effect on gear stick development. By replacing the mechanical link between the gear selector and the transmission with electronic controls, manufacturers can implement a wide range of interface styles. These include rotary dials, push-button selectors, toggle switches and even touchscreen controls.
One prominent example is Tesla’s elimination of the traditional gear stick altogether. Instead, gear selection is integrated into the vehicle’s central touchscreen, with backup roof-mounted buttons. While minimalist and futuristic, such arrangements have been praised for the streamlined user experience they offer.
Rotary gear selectors, which require the driver to turn a dial to select drive modes, are another common innovation. These often retract into the dashboard when not in use, contributing to a sleek and less cluttered interior.
Autonomy and the Future of Gear Stick Innovations
As vehicles advance towards higher levels of autonomy, especially Level 5 (fully self-driving), the relevance of the gear stick is diminishing. Autonomous systems will manage all aspects of vehicle operation, including gear changes, removing the need for driver input.
This shift has profound implications for gear stick ergonomics. Rather than being a control device, the gear selector may become symbolic or disappear entirely. In partially automated vehicles (Levels 3 and 4), gear selectors may remain as override mechanisms. That said, their role will be secondary to the vehicle’s control systems.
Human-machine interfaces (HMIs) will instead focus on communicating vehicle status and facilitating safe transitions between automated and manual control modes.
FAQs
What is the history of the gear stick in cars?
The gear stick originated in the late 19th century as a simple mechanical lever. Its usage was simple: to control the clutch and gear system manually.
How has the gear stick evolved over time?
The gear stick has progressed from basic mechanical levers to sophisticated electronic selectors, reflecting advances in transmission and vehicle design.
When did automatic gear sticks become popular?
Automatic gear sticks gained widespread popularity in the 1940s following the introduction of GM’s Hydra-Matic transmission.
What is the difference between early and modern gear levers?
Early gear levers were purely mechanical and required manual synchronisation, while modern gear levers use electronic systems for smoother, automated control.
From mechanical gear levers to electronically controlled selectors, the evolution of the gear stick is based on a diverse timeline. All the developments through the years reflect transformative shifts in automotive technology to cater to evolving market dynamics. Many new cars for sale in the UAE are equipped with advanced transmission systems. Automotive technology has become sophisticated to deliver better performance and practicality while ensuring safety.
